Summary

The Particle Flat API provides patient medical record data in an easily ingestible format designed for persistence. The endpoint currently offers clinical records in a flattened JSON output grouped by human-concept datasets - e.g. labs, vital signs, encounters, medications, etc.

This documentation will help you get started with initiating Flat queries, polling for the query status, pulling the returned data, and leveraging the data in your clinical workflow.

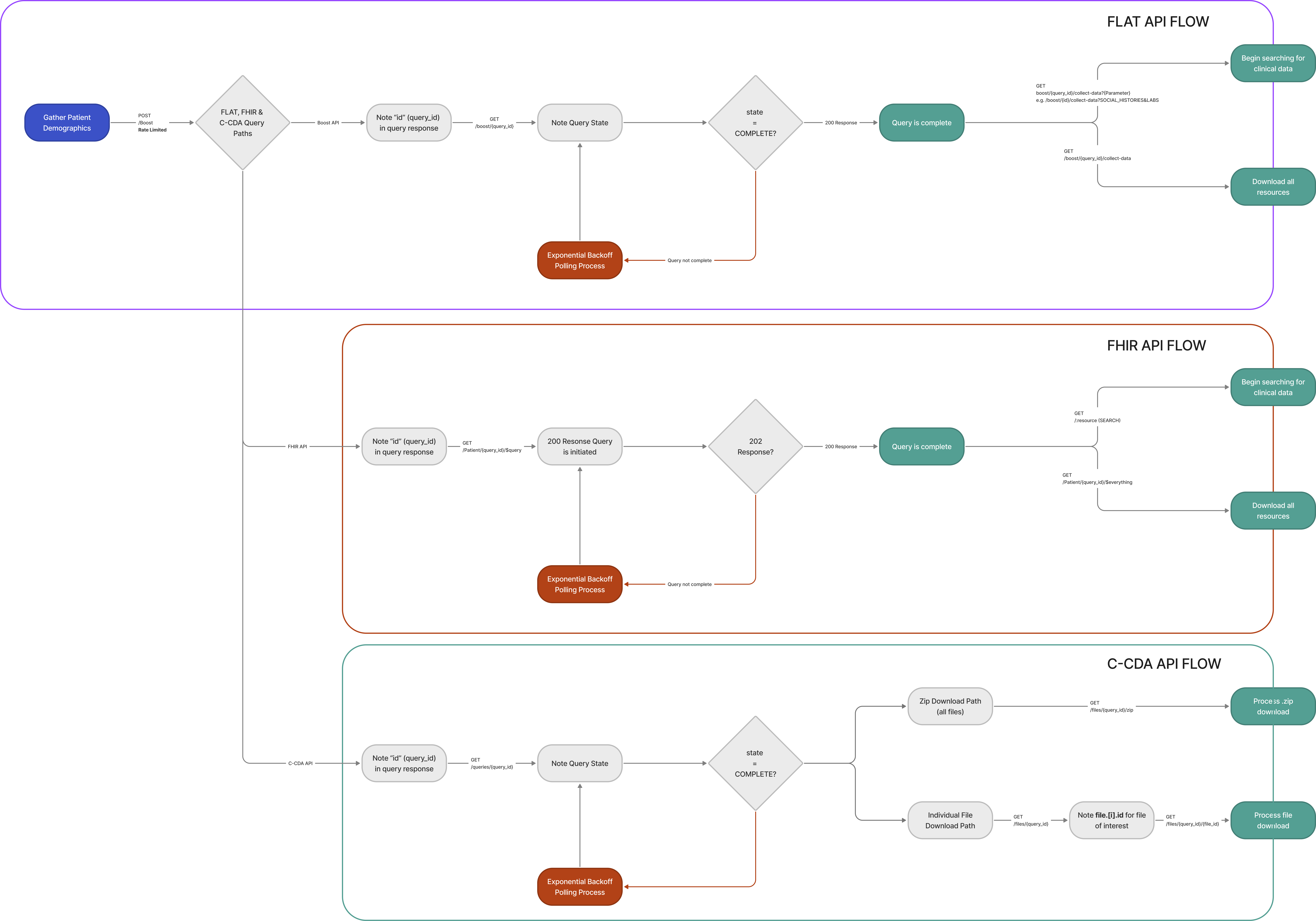

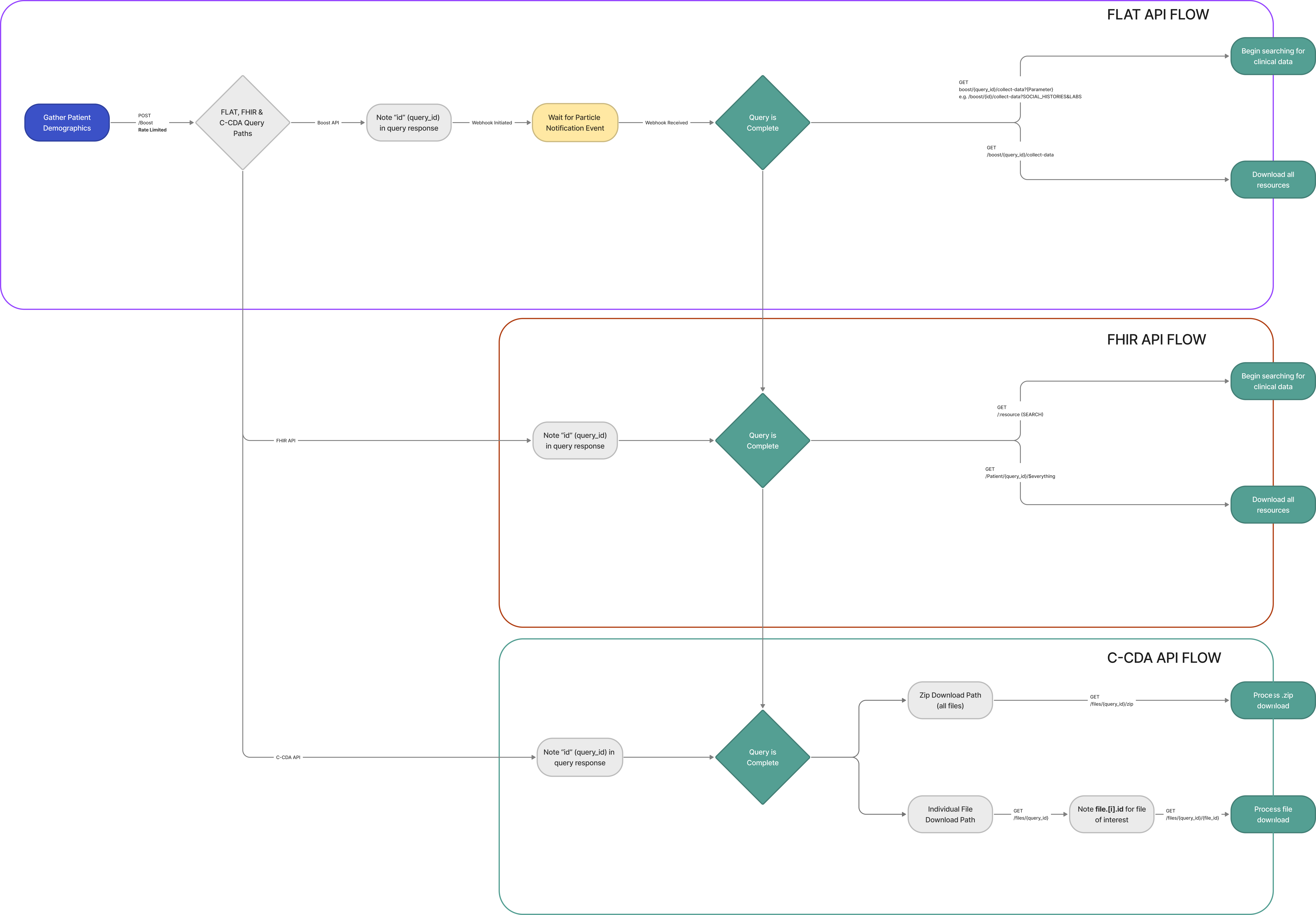

Particle Flat API Flow

Overview

The Particle Flat API is centered around the patient. Each query will begin with submitting a set of patient demographics, which we will register and return a unique ID for. Subsequently, you can use this Query ID to check the status of the query for completion, and once ready, pull patient data in Flat output format.

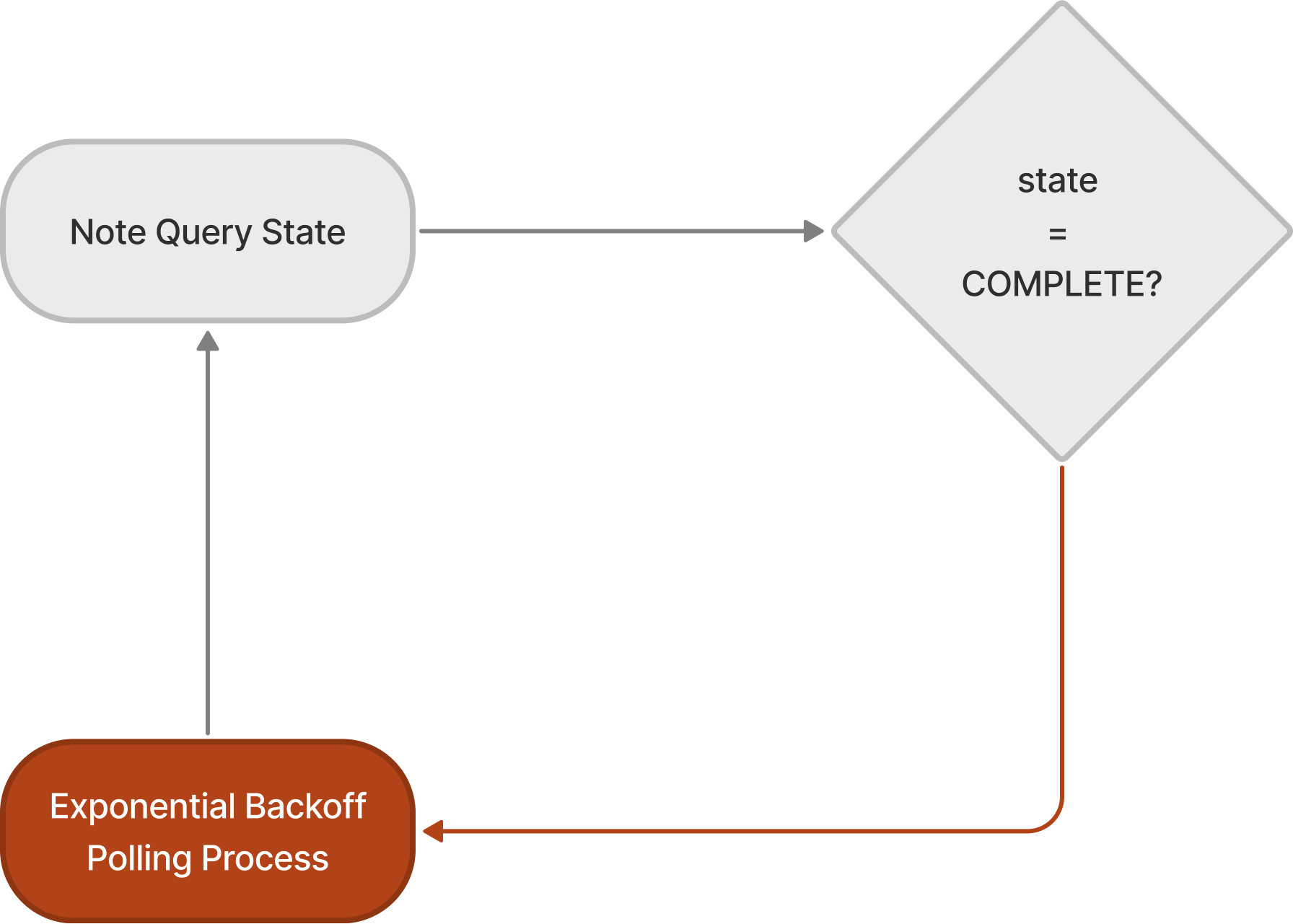

Polling for Query Status

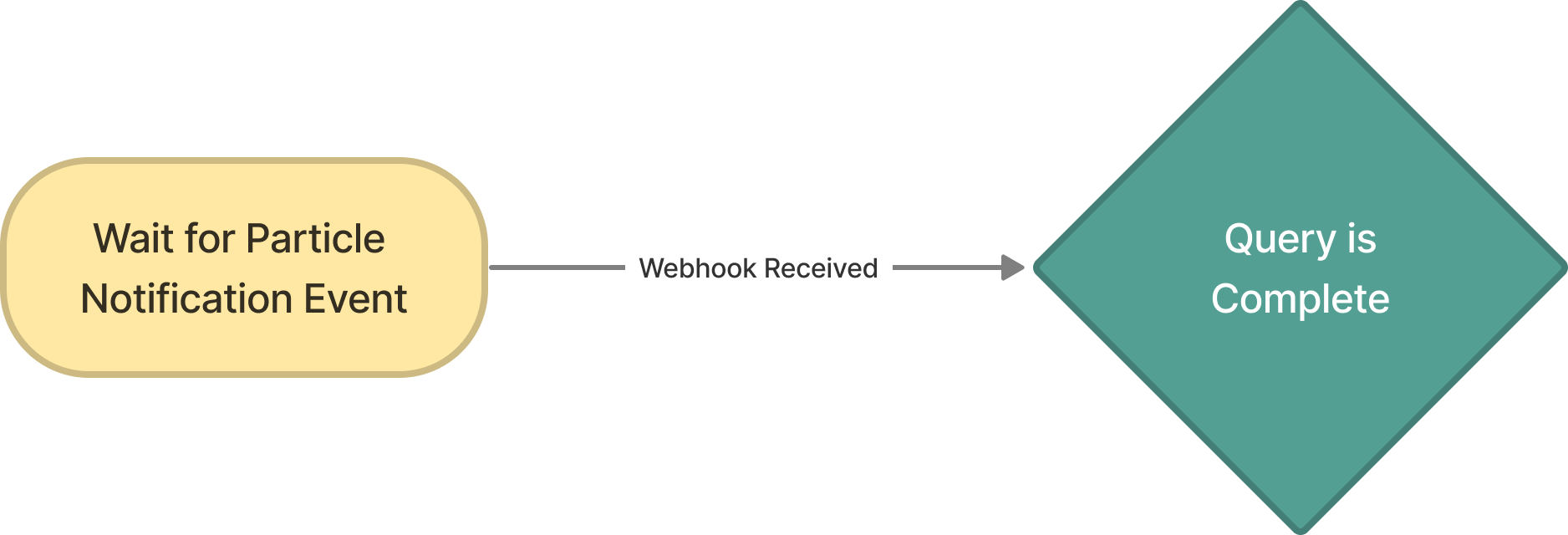

Event Notification for Query Status

The steps below provide technical detail in how to perform the full query flow.

📘

Currently, only Kam Quark is available for Boost/Flat sandbox API. Other synthetic patients will be added in the future.

Initiating a Flat Patient Query

Submit Patient Demographics

The first step is to submit the patient demographics to the Flat endpoint to trigger a network query via the POST /boost route.

If this response is successful, you will receive a status code 200, as well as a unique Query_ID to use in subsequent steps in place of {id}.

curl --request POST \
     --url 'https://api.particlehealth.com/boost' \
         --header 'Authorization: {authorization_token}' \
     --header 'accept: application/json' \
     --header 'content-type: application/json' \
     --data '
{
         "hints": [
          "{additional_postal_codes}"
     ],
     "address_city": "{city}",
     "address_state": "{state}",
     "date_of_birth": "{yyyy-mm-dd}",
     "family_name": "{last_name}",
     "gender": "{gender}",
     "given_name": "{first_name}",
     "postal_code": "{main_postal_code}",
     "purpose_of_use": "TREATMENT"
}'

Example unique Query_ID Output: f34258bb-2b82-4b2e-940e-773ac823e387

The Flat Query_ID can also be used as the C-CDA Query_ID to pull C-CDA records or the Patient_ID for FHIR records

Retrieving the Flat Patient Query Status

The next step is to check the query status to determine if a query is complete and ready for data retrieval. You can opt to use our webhooks feature to be notified of query completion, or alternatively you can use the GET /boost/{id} route and poll this endpoint for a 200 status.

curl --request GET \
     --url 'https://api.particlehealth.com/boost/{id}' \
     --header 'Authorization: {authorization_token}' \
     --header 'accept: application/json'

Once you receive a 200 response from the GET /boost/{id} route, the query is ready for data retrieval. If you receive a 202 status code, this means the query is still processing.

The posted patient demographics will also be returned with a successful request to the GET /boost/{id} route to display which demographics an ID is associated with and to confirm that a set of demographics has been successfully POSTed.

Retrieving Flat Patient Query Data

Once the query is complete, the final step of the Flat process is to retrieve the data via theGET /boost/{id}/collect-data[parameters] route. You can specify which Particle Flat datasets to receive by specifying them in the [parameters].

Below is an example of how to retrieve the labs data set for a given Query ID:

curl --request GET \
     --url 'https://api.particlehealth.com/boost/{id}/collect-data?LABS' \
     --header 'Authorization: {authorization_token}' \
     --header 'accept: application/json'

The following section details the available Particle Flat datasets and how to format the parameters to request a single dataset, multiple datasets, or all datasets.

Selecting the Data Models Using the Parameters

To access any of the above datasets via the GET Flat data endpoint, include the dataset name as a parameter after the collect-data endpoint in the [parameters]:

curl --request GET \
     --url 'https://api.particlehealth.com/boost/{id}/collect-data?LABS' \
     --header 'Authorization: {authorization_token}' \
     --header 'accept: application/json'

For two word datasets, please concatenate the two word dataset name with an underscore in the [parameters]:

curl --request GET \
     --url 'https://api.particlehealth.com/boost/{id}/collect-data?SOCIAL_HISTORIES' \
     --header 'Authorization: {authorization_token}' \
     --header 'accept: application/json'

You can specify multiple datasets by concatenating the with an ‘&’ in the [parameters]:

curl --request GET \
     --url 'https://api.particlehealth.com/boost/{id}/collect-data?SOCIAL_HISTORIES&LABS' \
     --header 'Authorization: {authorization_token}' \
     --header 'accept: application/json'

Not specifying a dataset in the [parameters] will return all datasets available:

curl --request GET \
     --url 'https://api.particlehealth.com/boost/{id}/collect-data' \
     --header 'Authorization: {authorization_token}' \
     --header 'accept: application/json'

The following section contains further information on how to link the data models together to leverage the data for your clinical workflow.

How to Leverage the Flat Data for Clinical Workflows

This section provides guidance on how to make sense of the Particle Flat output, how to link the different data models together, and provides examples of how to filter the data down to exactly what you need for your clinical workflow.

What does the Flat Output Look Like?

The Flat output is a flat structure that is much easier to ingest and persist as compared to FHIR R4. The output of the Flat API is formatted in JSON and will consist of the datasets that you specify in the parameters of the GET /boost/{id}/collect-data[parameters] request. Each dataset will consist of a list of dataset entries. Below is an example of the Labs and Encounters datasets in a Flat output. Each Lab entry or Encounter entry will have all of the fields shown in the dataset schema in the section above.

{
    "LABS": [
        {
            "field_1": "value_1",
            "field_2": "value_2",
            "field_n": "value_n"
        },
        {
            "field_1": "value_1",
            "field_2": "value_2",
            "field_n": "value_n"
        }
    ],
    "ENCOUNTERS": [
        {
            "field_1": "value_1",
            "field_2": "value_2",
            "field_n": "value_n"
        },
        {
            "field_1": "value_1",
            "field_2": "value_2",
            "field_n": "value_n"
        }
    ]
}

Available Flat Data Sets

How to Link the Data Sets

To gain additional clinical context with the Flat datasets, each dataset contains a primary key(s) and/or foreign key(s) that allow you to link the various tables together. For example, if you were interested in which encounter a diagnosis was made, you can link the Problem entry to an Encounter entry. To do this, link the Problem.EncounterID to the Encounter.EncounterID.

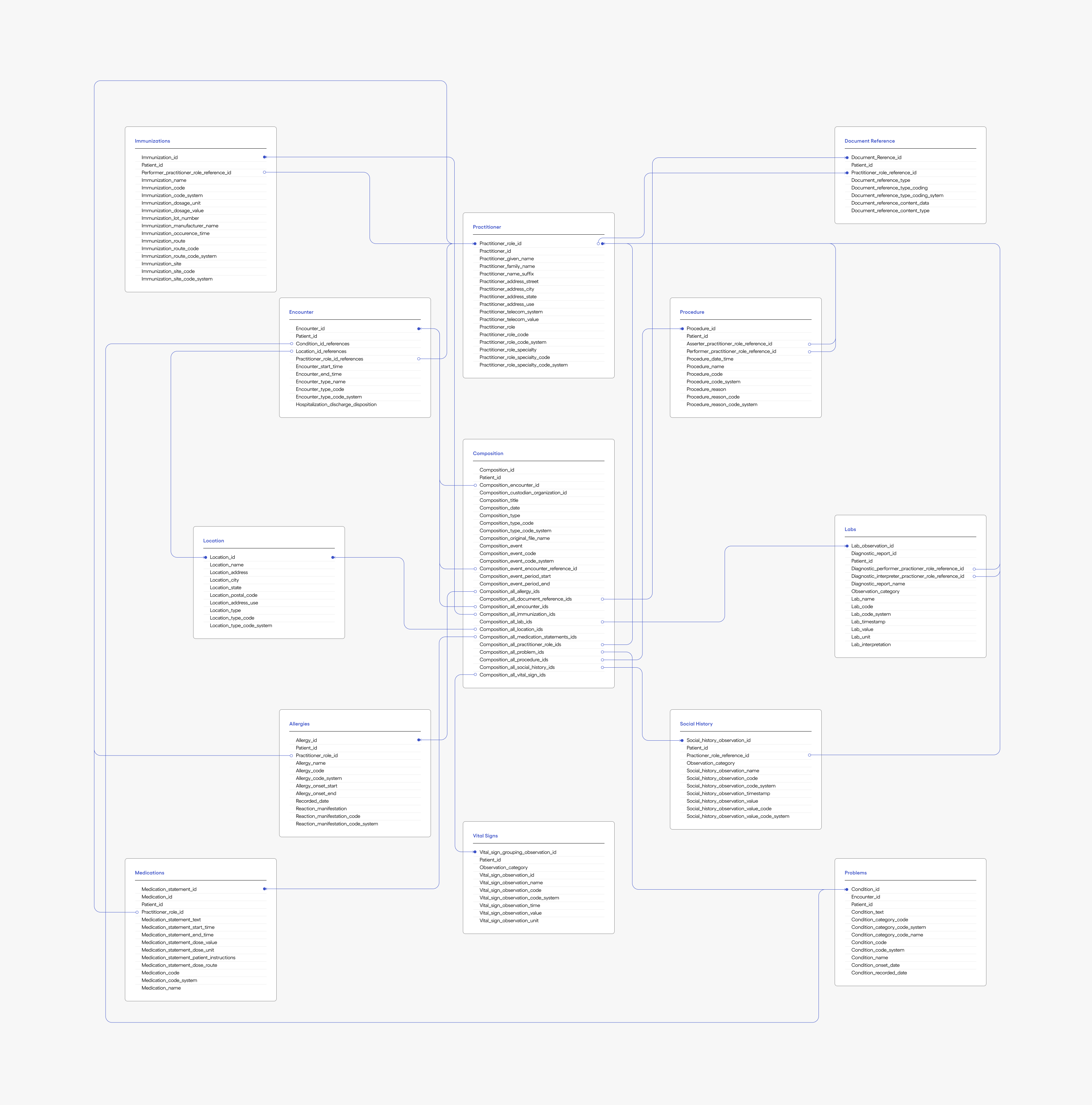

For additional information on which keys are compatible, we have included an entity relationship diagram here:
